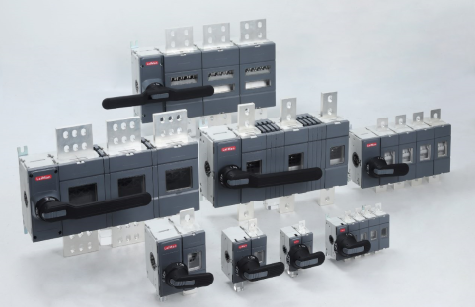

LMOT Load Isolation Swtich

Category:Load Isolation disconnector

Print current page

Favorites

Email: laiman@laiman.cn

FAX:0577-62779102

TEL:0577-62779107    13868638928

Application



LMOT Loadisclation switch can be from 63A to 4000A it is the basic type of module design, it has three poles and four poles ( three pdles +switch neutral pole), applied to make and break circuit or electric isolate, over 1000A is only for electric isolation.

Symbol window on front face indicates the contact on-off state.

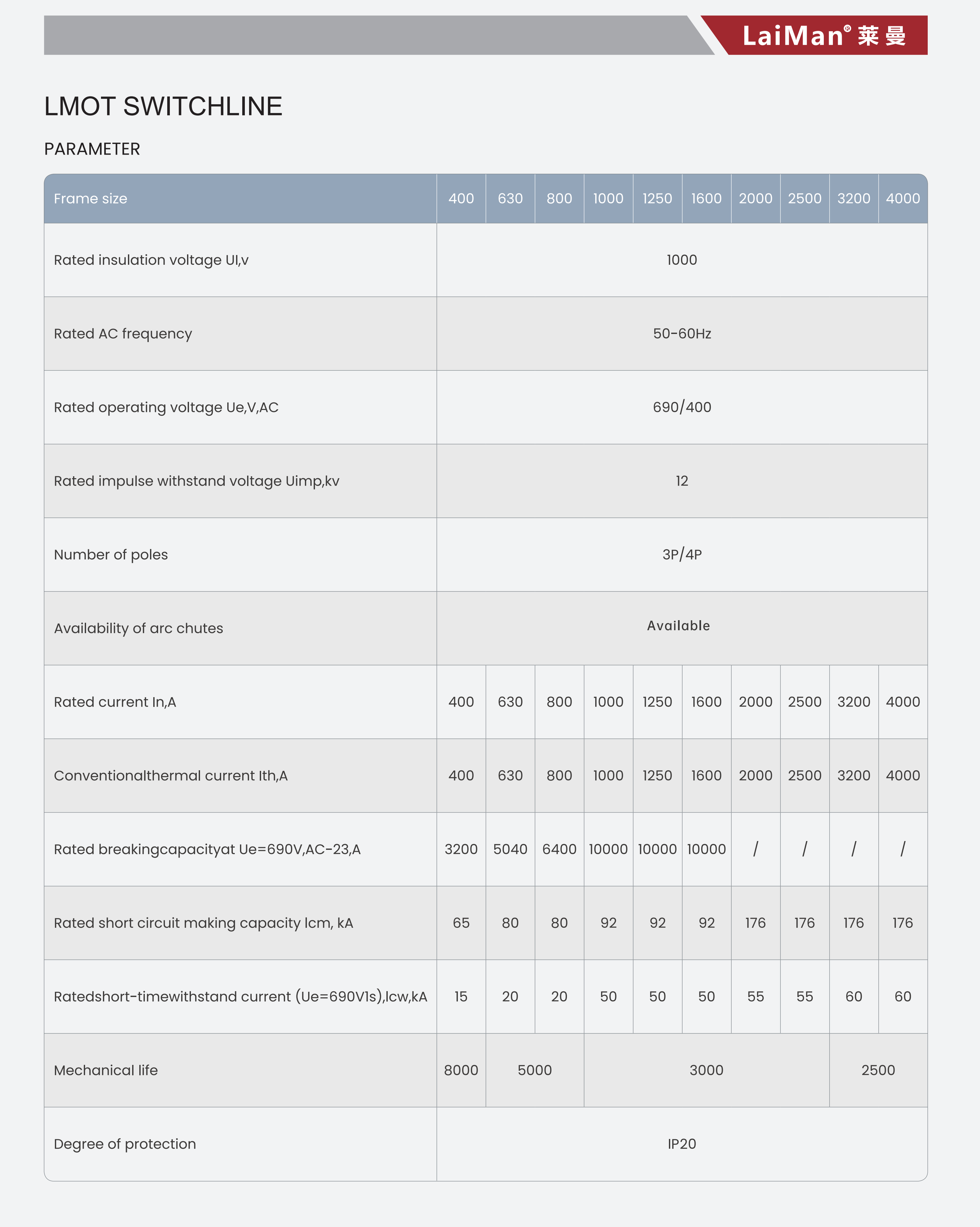

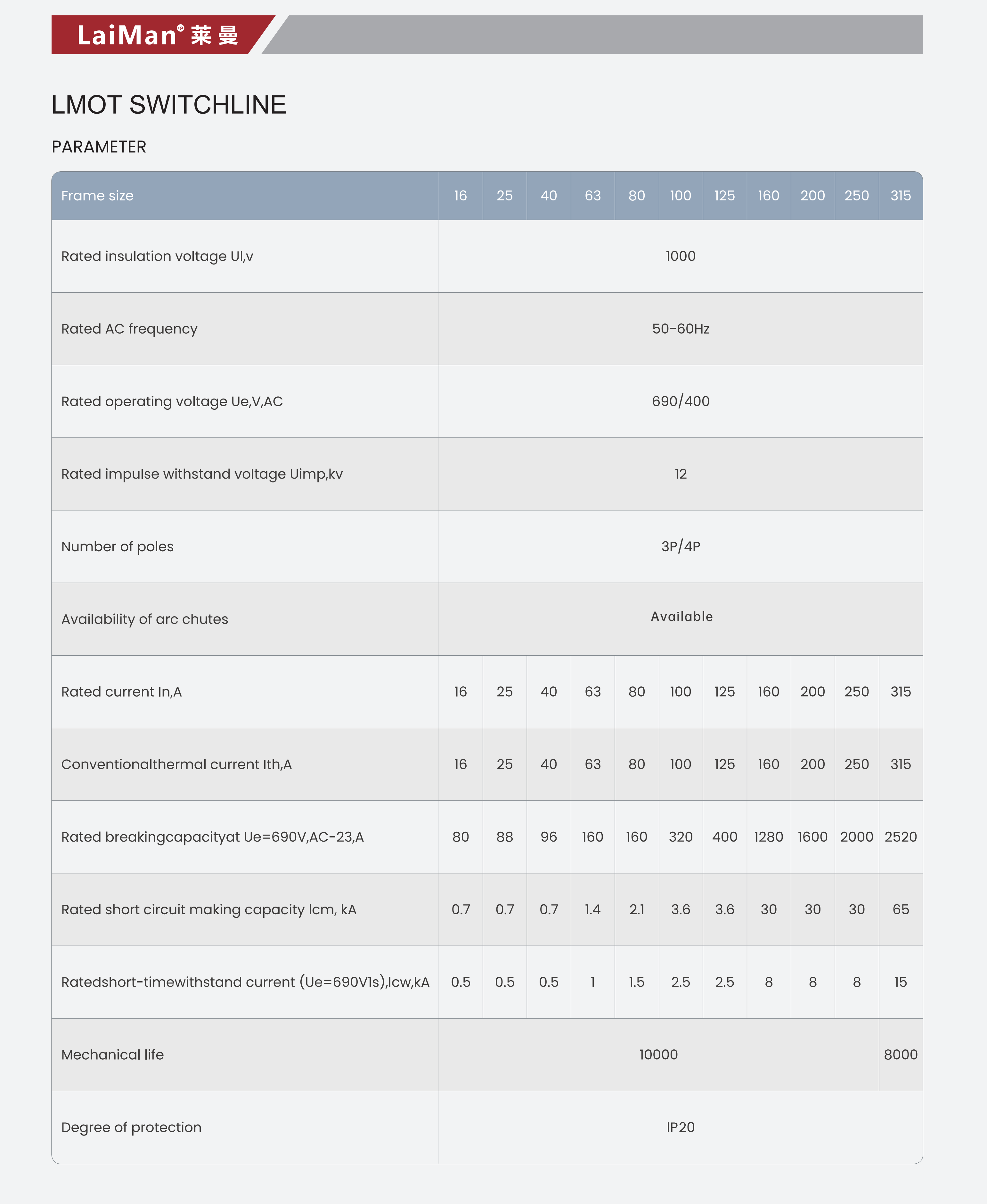

Technical Paraweters
